Silver ESD Layer 8 mm Embossing Key Membrane Switch With Multilayer

Brand Name : WenYi
Model Number : WY-MS-022
Certification : ISO, RoHs, SGS. Reach
Place of Origin : Made in China
MOQ : 10 pcs
Price : Negotiable according to Qty forecast
Payment Terms : Western Union, L/C,, T/T, D/P, D/A
Supply Ability : 80,000 pcs / Month
Delivery Time : 10-15 working days
Packaging Details : ploybag, anti-static ploybag per pc, then put in carton
Overlay meterial : 0.175 mm PC
layer : Multi-layer
Embossing type : Round embossing
Dome : 8 mm Polydome
Circuit : 0.05 mm PET
Window : Clear LED Window
Back adhesive : 3M 468 MP
Connector : 8 Pin Female Connector
Contact Now

Silver ESD Layer 8 mm Embossing Key Membrane Switch With Multilayer


Item Description:

Overlay: Sand PC 0.175 overlay

Membrane switch type: Tactile Dome

Dome type: 8 mm Polydome

Embossing:Round Embossing


Connector: Female Connector 8 Pin


Push botton membrane switch


Application:


Control Keypad Device

Sample Lead time : 8-10 working days

Mass production lead time: standard leadtime 9-14 working days

MOQ: 10 PCS

Defected Rate and guarantee: 0.3% as standard

Quality Standard: ISO9001, RoHs, Reach, SGS.


Product Characters


  1. Custom made OEM/ODM
  2. Rasing, and sanding treatment available
  3. Clear LED and LCD window
  4. Whole Design Service
  5. color keys screen print are available
  6. Digital Print can be ok
  7. SMT Led assembly available
  8. Withstand millions of cycles
  9. Perfect exterior

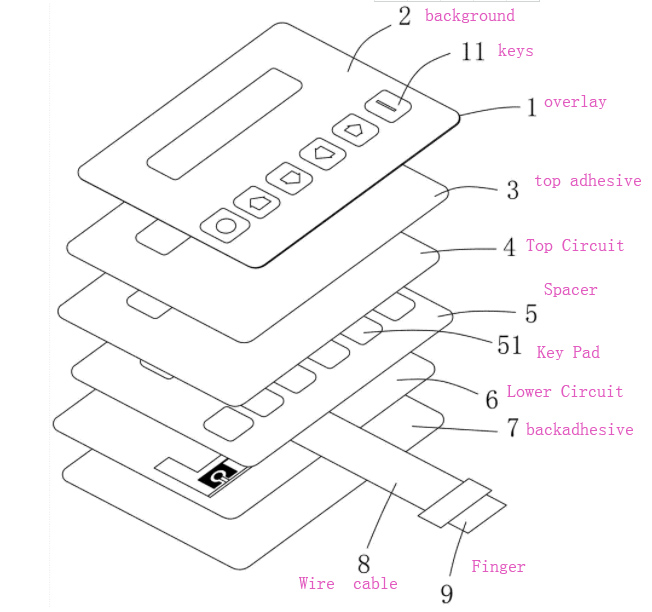

Standard Membrane Switch Structure:



Our Advantage:

  1. Only focus in membrane switch and related items.
  2. Strong R&D capability
  3. Low cost and competitive price
  4. Quick delivery
  5. 100% computer test and inspection before shipment
  6. One stop purchase available for customer
  7. Whole solution design available
  8. All Products provide one year quality warranty or 1 million operation life span

Technical Specification:


Engineering capabilitycustomer design(OEM), own design(ODM),
Factory capacity500,000pcs / month
wire lead resistance:<1Ω/CMLife time:>1 Million times
rated current:25-100mA,0~30V DCOperation Temperature:-40℃~70℃
Rated Voltage:<50V, DCOperation Humidity:at40℃,<98%RH
Insulation resistance:<100MΩ,250V DCDome springback time:<5 msec
Switch travel:Flat Type 0.05-0.3mmBase Material voltage withstand:1500 V DC
tactile type:0.3-1.5mmTail flexiblility:any angle within 180 degree
Print typesilkscreenDigital printUV print
Dome typemetal domeploydomeembossing keys
Embossing typevarious kinds of embossing available,embossing height max 1.2mm
Quality control levelDefect Rate less than 4 pcs out of 1000pcs
Quality GuaranteeProvide 1 year or 0.5~1 milion operation times, as per standard.
Sample lead time9 to 10 working days as standard
Mass Production lead time12 to 20 working days, as per order volume. Urgent order available
MOQ20 pcs / lot, might be different as per specification

Application

  1. *Medical Equipment
  2. * Telecommunications apparatus
  3. * Smart phone systems
  4. * Household appliances
  5. * Security systems
  6. * Various industry control keypad panel
  7. * consumer electronics and 3C items.
